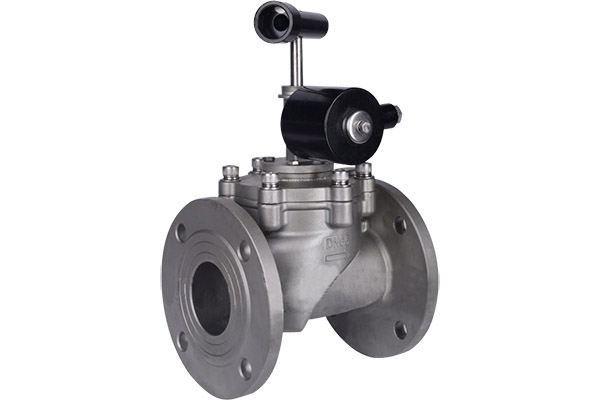

Solenoid Valve

Name: Solenoid Valve

Size: 3/8,1/2,3/4,1,1 1/4,1 1/2,2 and etc

Characteristic:
Direct lifting diaphragm construction
Open from zero bar for low pressure system use
High frequency of DIN plug coil
Explosion proof

Material:
Body: Brass or Stainless steel
Seal: NBR,EPDM,PTFE or VITON
Armature Tube: Stainless Steel 304
Plunger: Stainless Steel 430F
Stop: SS430F

Working Medium:
Water, air,gas, etc

Type:
Normally closed type or as client’s requirments

Operating Temperture:
NBR Seal: 14F to 176F, -10~80°C
EPDM Seal: 14F to 250F,-10~120°C
VITON Seal : 14F to 300F, -10~150°C

Port Thread:
BSPP ,BSPT ,NPT ,Flange, UNF, M8X1

Voltage:
DC - 12V,24V /AC - 24V,120V, 240V@60HZ 110V,220V@50HZ

Working-pressure:
0~1.0Mpa

Pneumatic drive:
Aluminum electric/Pneumatic actuator, Stainless steel electric/Pneumatic actuator

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual)

Quality Control (QC):
The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging

Suitable Medium:
Natural Gas, Steam,Oil,Acids, bases, coal ash, slag, mud, including granular, fibrous and etc
