Home > Products > Pipes & Tubes > Seamless Pipe/Tube
Oil Linepipe
Oil Linepipe
Oil Linepipe
Oil Linepipe
Oil Linepipe video picture

Oil Linepipe

We're here to help Easy ways to get the answers you need.

Contact Us

Details
Dimensions
Others
Standard Class Grade   Yield Strength Tensile Strength Elogation Rt0.5/Rm Tensile strength of weld seam
API SPEC 5L ISO 3183 GB/T 9711 PSL1 L210 or A Min 210 335 a - 335
L245 or B Min 245 415 a - 415
L290 or X42 Min 290 415 a - 415
L320 or X46 Min 320 435 a - 435
L360 or X52 Min 360 460 a - 460
L390 or X56 Min 390 490 a - 490
L415 or X60 Min 415 520 a - 520
L450 or X65 Min 450 535 a - 535
L485 or X70 Min 485 570 a - 570
PSL2 L24N or BN L245Q or BQ L245M or BM Min 245 415 a - 415
Max 450 655   0.93
L290N or X42N L290Q or X42Q L290M or X42M Min 290 435 a - 415
Max 495 655   0.93
L320N or X46N L320Q or X46Q L320M or X46M Min 320 460 a - 435
Max 525 760   0.93
L360N or X52N L360Q or X52Q L360M or X52M Min 360 490 a - 460
Max 530 760   0.93
L390N or X56N L390Q or X56Q L390M or X56M Min 390 490 a - 490
Max 545 760   0.93
L415N or X60N L415Q or X60Q L415M or X60M Min 415 520 a - 520
Max 565 760   0.93
L450Q or X65Q L450M or X65M Min 450 535 a - 535
Max 600 760   0.93
L485Q or X70Q L485M or X70M Min 485 570 a - 570
Max 635 760   0.93
L555Q or X80Q L555M or X80M Min 555 570 a - 625
Max 705 760   0.95
L625M or X90M Min 625 625 a - 695
Max 775 825   0.97
L690M or X100M Min 690 695 a - 760
Max 840 915   0.99
L830M or X120M Min 830 760 a -335 915
Max 1050 990   0.99
Cold Rolling

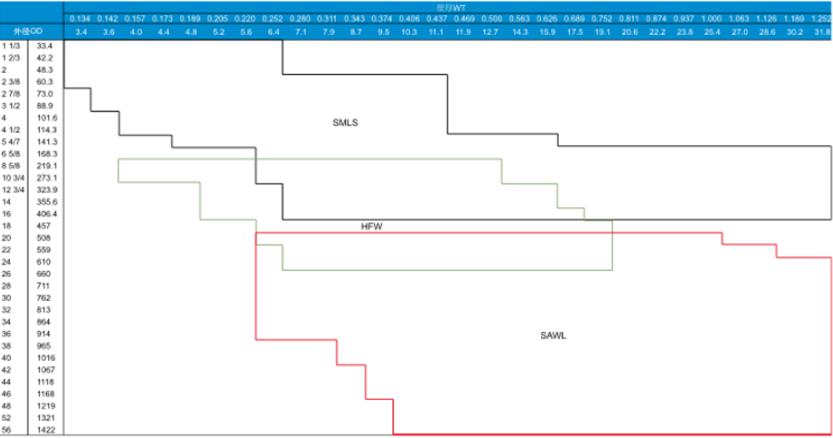

Type Grade. Min Grade. Max OD Min mm OD Max mm WT Min mm WT Max mm Production yearly/mt
SMLS B X80Q 33.4 457 3.4 55 200000
HFW B X80M 219.1 610 4 19.1 200000
SAWL X42 X100M 508 1422 6 38.1 500000


Standard Class Grade   Yield Strength/Mpa Tensile Strength/Mpa Elogation Rt0.5/Rm Tensile strength of weld seam
API SPEC 5L ISO 3183 GB/T 9711 For sour service L245NS or BNS L245QS or BQS L245MS or BMS Min 245 415 a - 415
Max 450 655   0.93
L290NS or X42NS L290QS or X42QS L290MS or X42MS Min 290 415 a - 415
Max 495 655   0.93
L320NS or X46NS L320QS or X46QS L320MS or X46MS Min 320 435 a - 415
Max 525 655   0.93 415
L360NS or X52NS L360QS or X52QS L360MS or X52MS Min 360 460 a -
Max 530 760   0.93 415
L390QS or X56QS L390MS or X56MS Min 390 490 a -
Max 545 760   0.93 415
L415QS or X60QS L415MS or X60MS Min 415 520 a -
Max 565 760   0.93 415
L450QS or X65QS L450MS or X65MS Min 450 535 a -
Max 600 760   0.93 415
L485QS or X70QS L485MS or X70MS Min 485 570 a -
Max 635 570   0.93 415
For offshore service L245NO or BNO L245QO or BQO L245MO or BMO Min 245 760 a -
Max 290 415   0.93 415
L290NO or X42NO L290QO or X42QO L290MO or X42MO Min 495 655 a -
Max 320 435   0.93 415
L320NO or X46NO L290QO or X42QO L290MO or X42MO Min 520 655 a -
Max 360 460   0.93 415
L360NO or X52NO L360QO or X52QO L360MO or X52MO Min 525 760 a -
Max 390 490   0.93 415
L390QO or X56QO L390MO or X56MO Min 540 760 a -
Max 415 520   0.93 415
L415QO or X60QO L415MO or X60MO Min 565 760 a -
Max 450 535   0.93 415
L450QO or X65QO L450MO or X65MO Min 570 760 a -
Max 485 570   0.93 415
L485QO or X70QO L485MO or X70MO Min 605 760 a -
Max 555 625   0.93 415
L555QO or X80QO L555MO or X80MO Min 675 825 a -
Max 675 825   0.93 415
