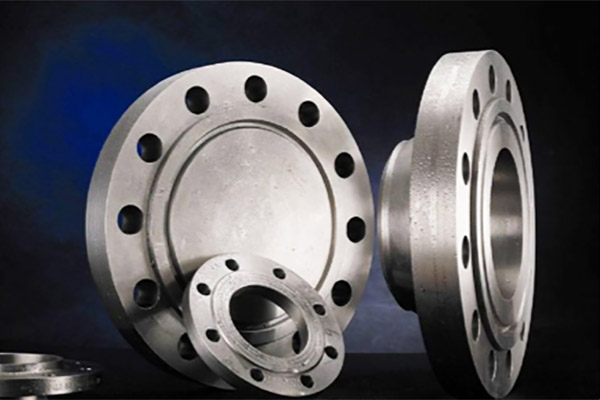

Name: Ring Type Joint Flanges
Size: 1/2”~72” or as client’s requirments
Pressure: 150LB/300LB/400LB/600LB/900LB~1500LB and etc
Material: Stainless Steel: F304/304L, F316/316L, F316Ti, F321, 1.4301,1.4306,1.4541,1.4571,1.4462, A707, 0 Cr18Ni9, 0Cr19Ni10, 0Cr17Ni12Mo2, 0Cr18NiC0Ti, 0Cr18Ni12Mo2Ti, etc
Surface: Carbon steel and alloy steel with yellow print, black print, oil or zinc, as customers requirements
Standard: ASTM B16.5:150LBS,300LBS,400LBS,600LBS,900LBS,1500LBS,2500LBS
DIN: 6Bar,10Bar,16Bar,25Bar,40Bar,
BS4504,PN2.5-PN440,BS10:Table D,E,F,H,
JIS: 5K,10K,16K,20K,30K
Test: Chemical Component Analysis, Mechanical Properties( Ultimate tensile strength, Yield strength , Elongation), Technical Properties( Flattening Test, Bending Test, Blow Test, Impact Test), Exterio inspection, Hydrostatic Test, X-ray Test
Usage: For petroleum/natural gas pipeline,for conveying water,drainage,coal gas,mineral slurry and other low-middle pressure liquids.Also for chemical industry,building structure,heat-supply and pipe driving projects
Size: 1/2”~72” or as client’s requirments
Pressure: 150LB/300LB/400LB/600LB/900LB~1500LB and etc
Material: Stainless Steel: F304/304L, F316/316L, F316Ti, F321, 1.4301,1.4306,1.4541,1.4571,1.4462, A707, 0 Cr18Ni9, 0Cr19Ni10, 0Cr17Ni12Mo2, 0Cr18NiC0Ti, 0Cr18Ni12Mo2Ti, etc
Surface: Carbon steel and alloy steel with yellow print, black print, oil or zinc, as customers requirements
Standard: ASTM B16.5:150LBS,300LBS,400LBS,600LBS,900LBS,1500LBS,2500LBS
DIN: 6Bar,10Bar,16Bar,25Bar,40Bar,
BS4504,PN2.5-PN440,BS10:Table D,E,F,H,
JIS: 5K,10K,16K,20K,30K
Test: Chemical Component Analysis, Mechanical Properties( Ultimate tensile strength, Yield strength , Elongation), Technical Properties( Flattening Test, Bending Test, Blow Test, Impact Test), Exterio inspection, Hydrostatic Test, X-ray Test
Usage: For petroleum/natural gas pipeline,for conveying water,drainage,coal gas,mineral slurry and other low-middle pressure liquids.Also for chemical industry,building structure,heat-supply and pipe driving projects
